■ 基本信息
別名: | Plasmid #63890 |
啟動子: | Lac/lac promoter |
復制子: | pUC |
質粒大小: | 4991bp |
質粒標簽: | C-6×HIS，C-HA |
原核抗性: | Amp |
克隆菌株: | TG1 |
培養條件: | 37度 |
■ 質粒屬性
質粒宿主: | 大腸桿菌,噬菌體 |
質粒用途: | 蛋白表達,抗體表達,噬菌體展示 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pComb3XSS是一個噬菌體展示質粒。pComb3X is the newest of the pComb vectors. Improvements over pComb3 include increased stability and introduction of an asymmetric SfiI cassette for directional cloning of full Fab, scFv, peptide and other protein for phage display. 6xHis and HA tags allow for purification and detection. An amber stop codon was introduced to turn-off expression of the pIII fusion protein by switching to a non-supressor strain of E. coli allowing production of soluble protein without subcloning. Alternatively, the gene for phage protein pIII can be removed by SpeI/NheI digest. pComb3XSS is recommended for preparation of vector for library cloning. The “SS” refers to the double stuffer, a 1200bp stuffer in the Fab light chain cloning region bounded by SacI and XbaI restriction sites and a 300bp stuffer in Fab heavy chain cloning region bound by XhoI and SpeI restriction sites. Also, the 1600bp double stuffer (both stuffers plus the leader sequence between the Fab light chain and heavy chain cloning regions) can be removed by SfiI digest so that non-Fab genes of interest can be cloned. Also available on Addgene: pComb3XTT and pComb3XLambda are only needed at templates for the construction of chimeric Fab libraries as described in Phage Display: A Laboratory Manual. pComb3XTT can also be used as an Fab expression control. 3rd generation plasmid for phage display on modified geneIII, contains stuffer fragment.
質粒只保證關鍵序列正確，不保證表達效果。

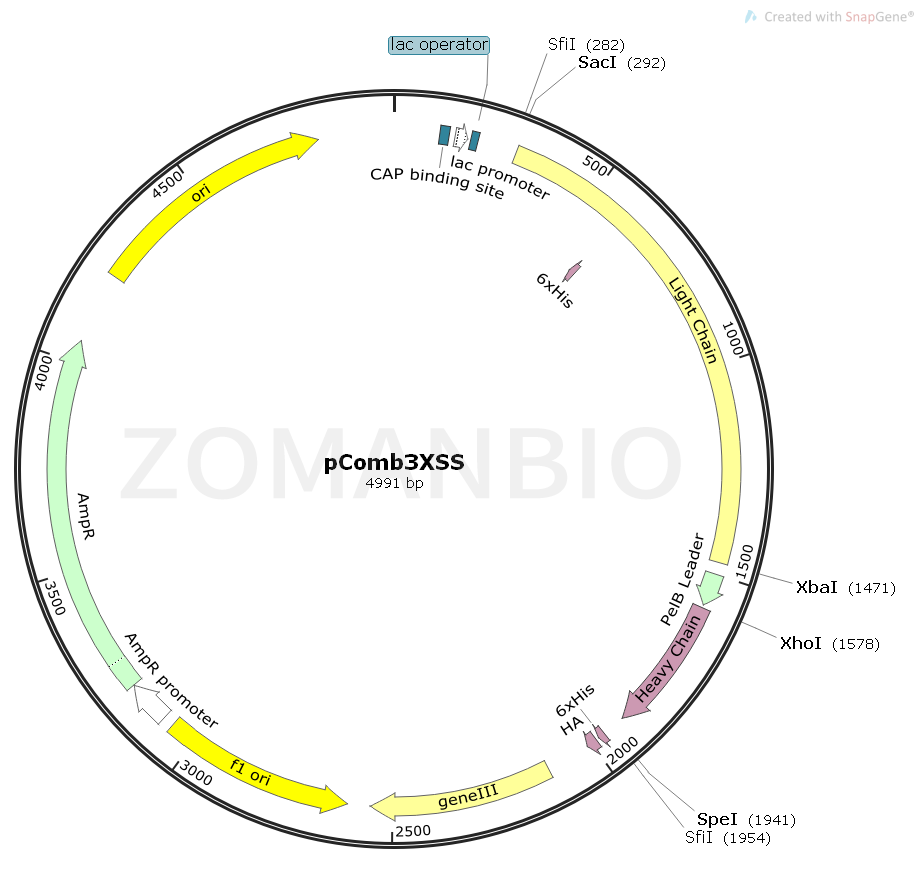

■ 質粒圖譜
■ 質粒序列
質粒序列可參考（具體以測序為準）下載：
ZK129pComb3XSS噬菌體展示質粒.txt
